Art. 7531

D-SYS Expansion joint profile S 10

Short description:

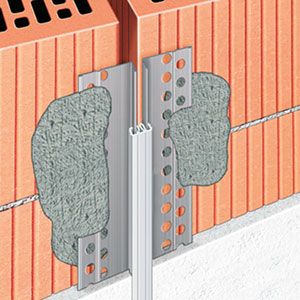

Expansion joint profile for the creation of vertical expansion joints in plaster facades. Used in the plane and in inside corners. The blue peel-off film protects the middle section against soiling while working.


Product description

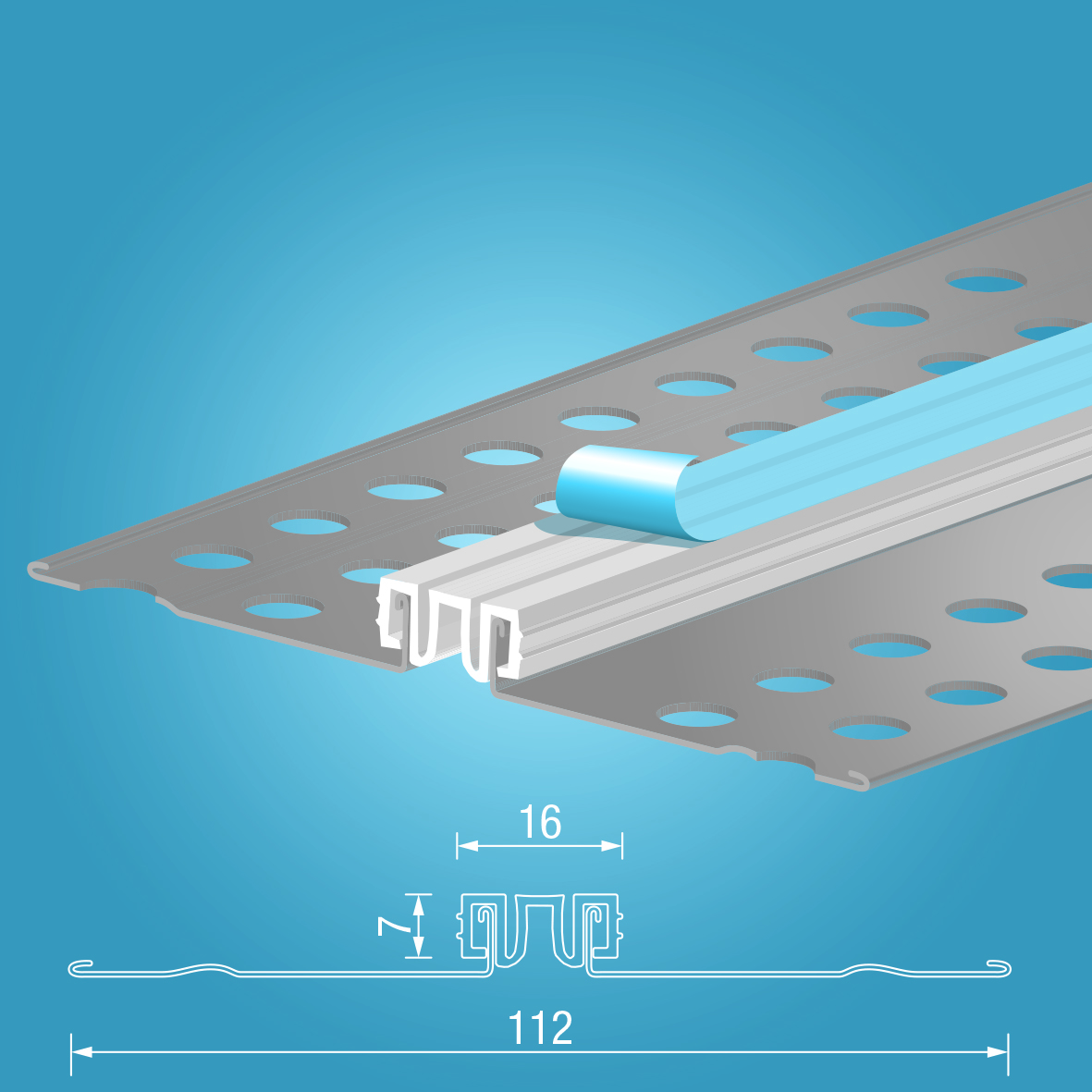

Three-part expansion joint profile with an elastic middle section, protected against soiling during installation by a peel-off film, made from a combination of hard PVC and TPE, as well as fabric limbs on both sides for even wall surfaces and corners.
CE mark – declaration of performance 3230/01

Please follow the application guidelines of the European association of plaster profile manufacturers EUROPROFILES for plaster profiles outdoors and indoors.


  • Plaster thickness 10 mm
  • Middle section made from H-PVC and TPE
  • Metal limb made from galvanised sheet steel
  • For vertical installation only
  • For even wall surfaces and inner corners


  • Visually appealing expansion joint profile
  • Absorption of large movements
  • UV-resistant
  • Weather-resistant
  • Maintenance-free

Product data

  Art.-No. Length Packaging Unit: Pallet Unit:
  7531260 260 cm 10 bars / bundle = 26 rm 64 bundles / pallet = 1664 rm
  7531300 300 cm 10 bars / bundle = 30 rm 64 bundles / pallet = 1920 rm



Technical data sheet

PDF 0,3 MB Download

Declaration of Performance

PDF 2,3 MB Download
