Art. 4230

D-SYS Expansion joint profile M 10

Short description:

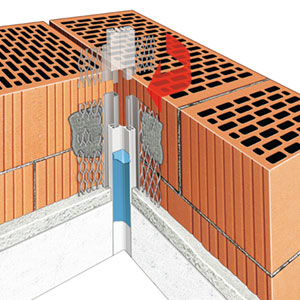

Expansion joint profile for the creation of vertical expansion joints in plaster facades. Used in the plane and in inside corners. The blue peel-off film protects the middle section against soiling while working.


Product description

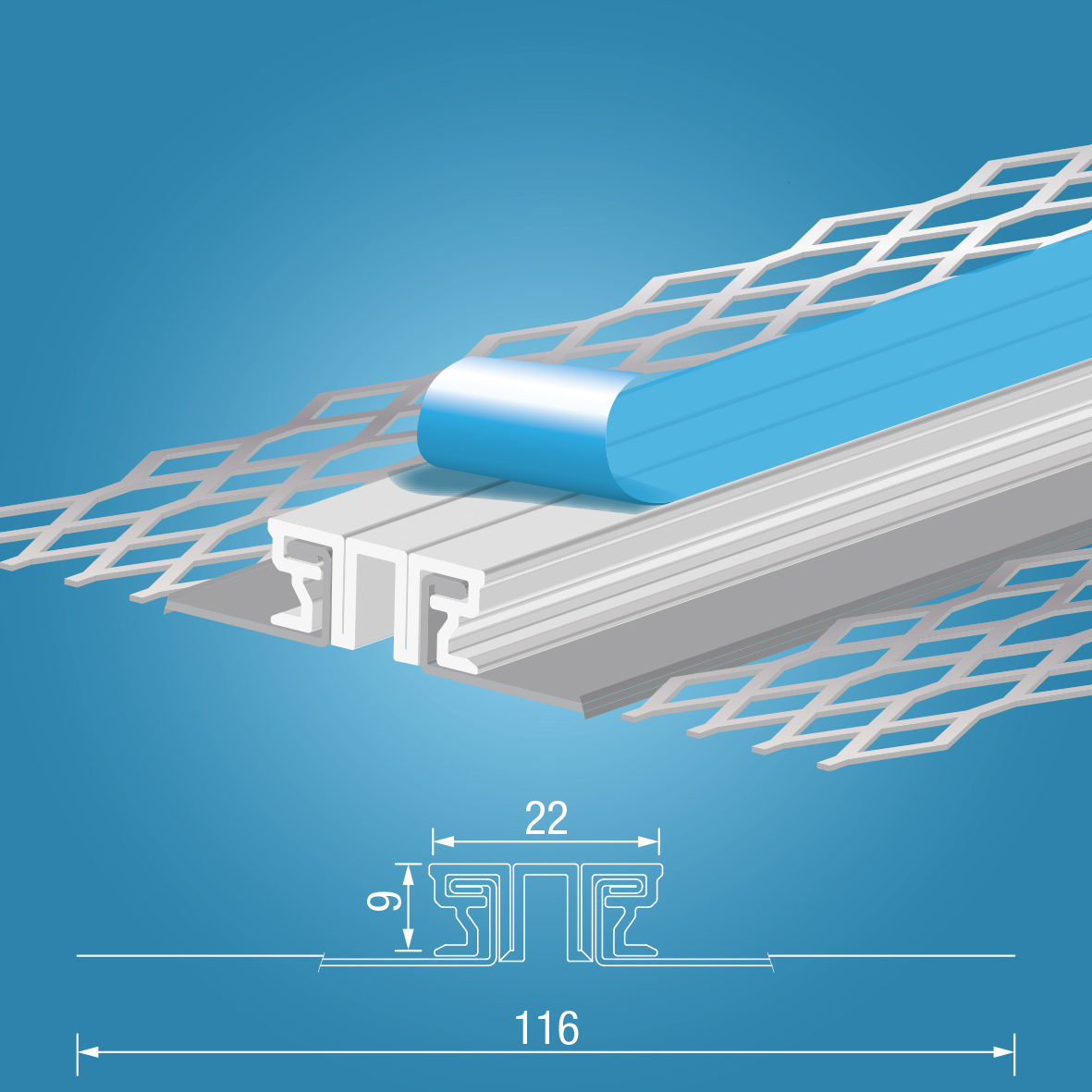

Three-part expansion joint profile with an elastic middle section, protected against soiling during installation by a peel-off film, made from a combination of hard PVC and TPE, as well as metal limbs made from expanded metal/galvanised sheet steel (optional V2A) on both sides for even wall surfaces and inner corners.

CE mark – declaration of performance 4230/01.

Please follow the application guidelines of the European association of plaster profile manufacturers EUROPROFILES for plaster profiles outdoors and indoors.


  • 10 mm plaster thickness.
  • Middle section made from H-PVC and TPE
  • Metal limb made from galvanised sheet steel, also available in stainless steel upon request
  • For vertical installation only
  • For even wall surfaces and inner corners


  • Visually appealing expansion joint profile
  • Absorption of large movements
  • UV-resistant
  • Weather-resistant
  • Maintenance-free

Product data

  Art.-No. Length Packaging Unit: Pallet Unit:
  4230300 300 cm 5 bars / bundle = 15 rm 64 bundles / pallet = 960 rm
